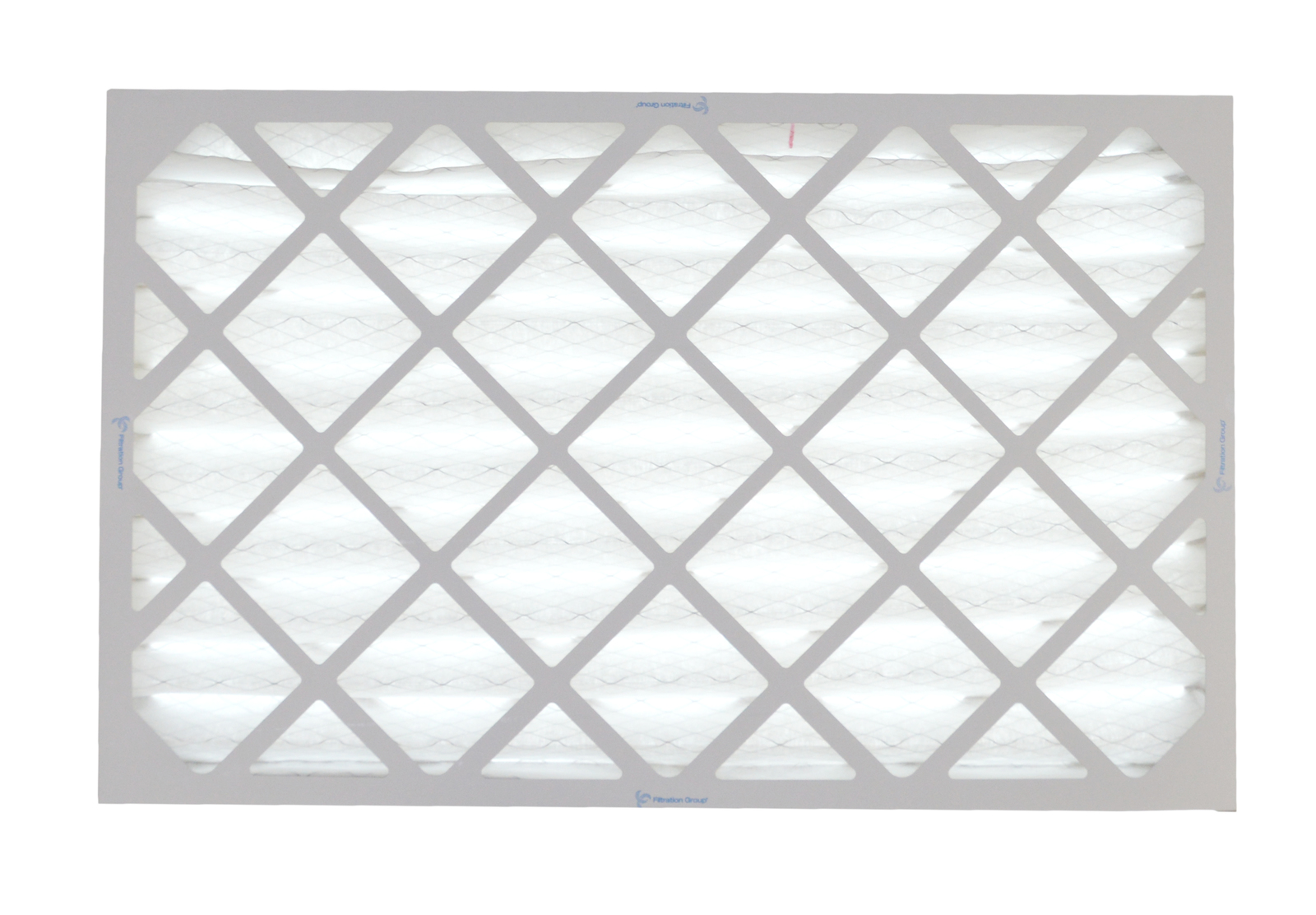

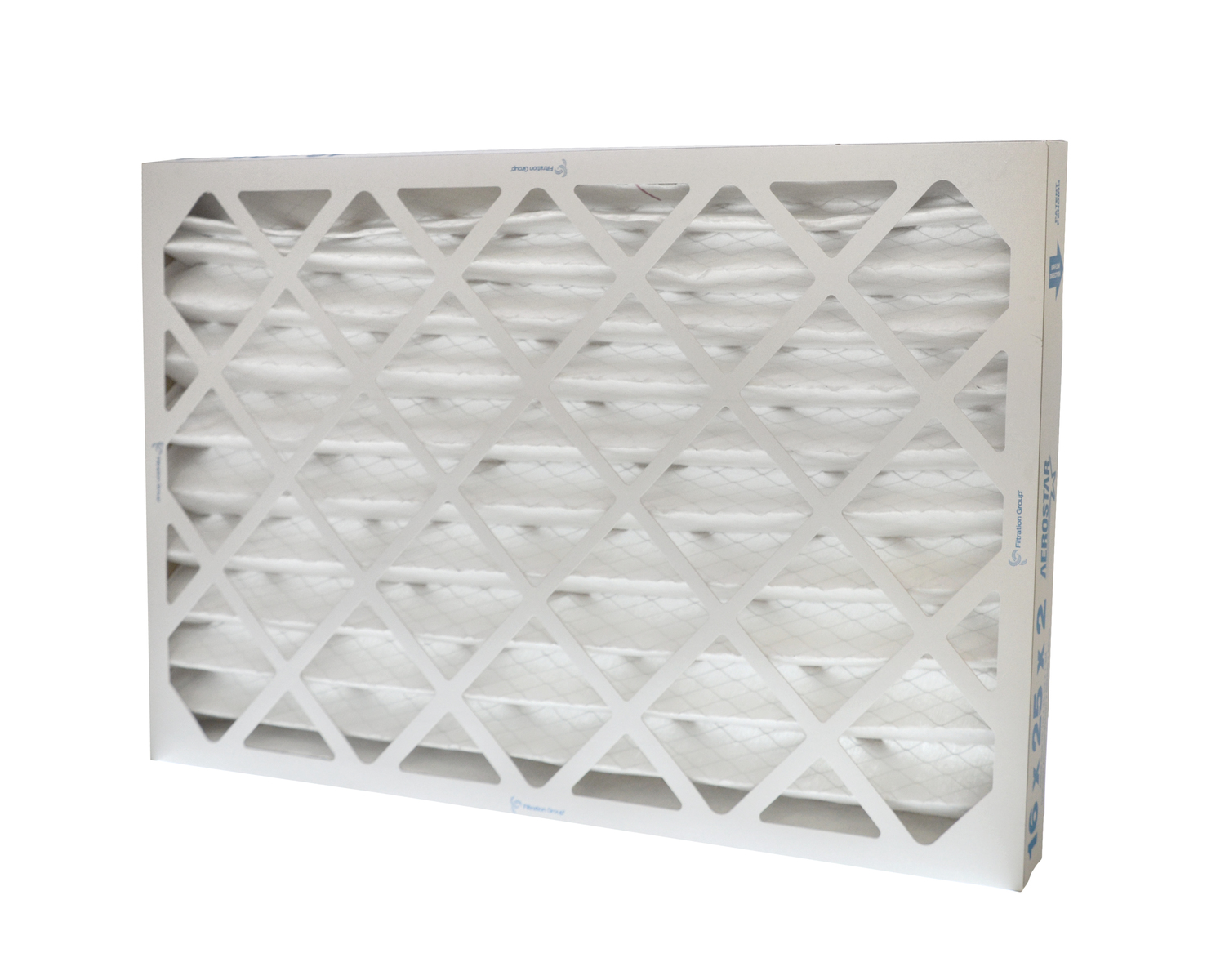

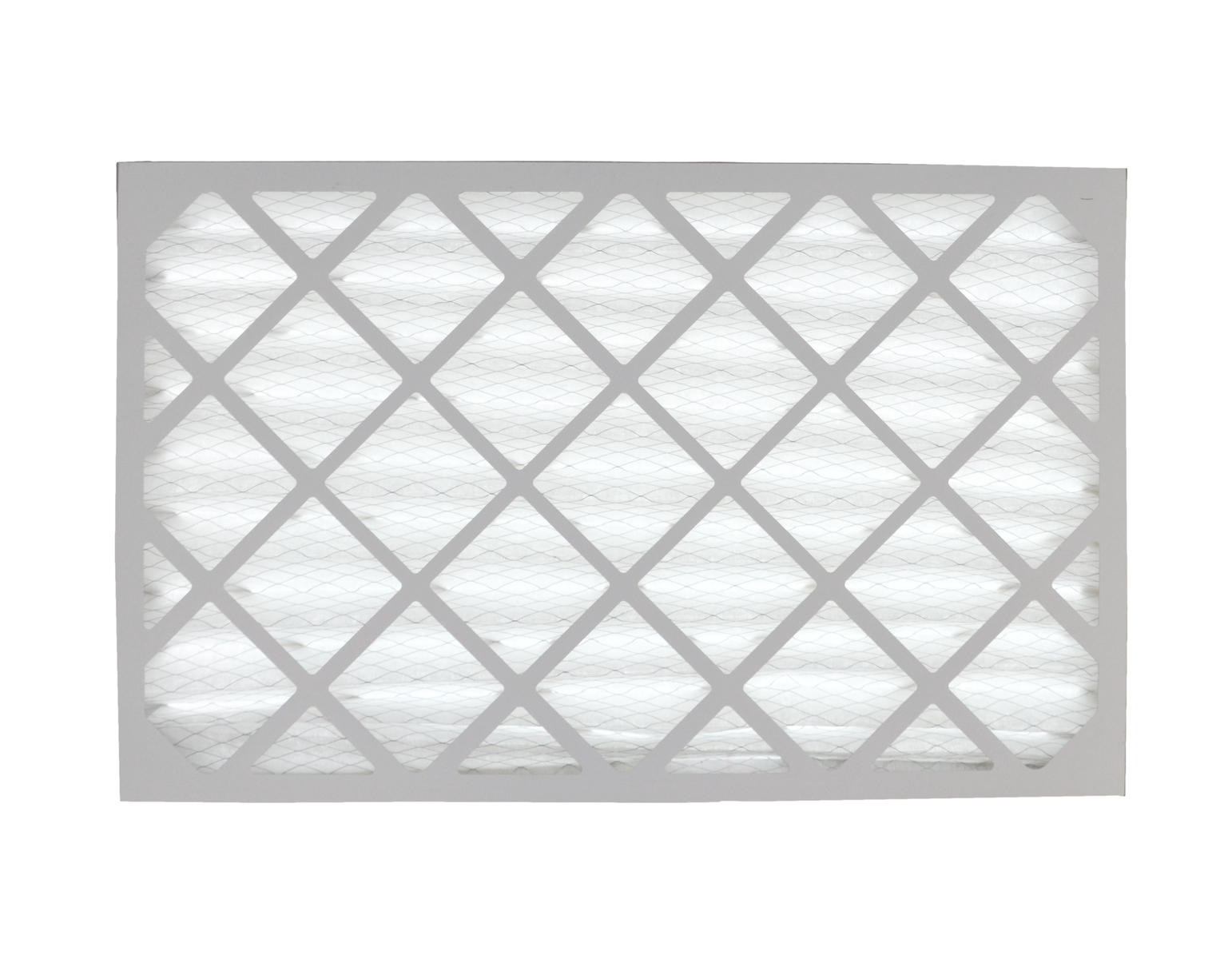

10386 - Genuine OEM FG IAQ Aerostar Series 400 Pleated Filter, 16" x 25" x 2", MERV 8, Standard Capacity

10386 - Genuine OEM FG IAQ Aerostar Series 400 Pleated Filter, 16" x 25" x 2", MERV 8, Standard Capacity

The 10386 Genuine OEM FG IAQ Aerostar Series 400 Pleated Filter is a 16" x 25" x 2" HVAC air filter with a MERV 8 rating and standard capacity. Designed for commercial, industrial, institutional, and other HVAC applications, this pleated filter helps remove airborne dust, pollen, mould, dander, and other airborne particles while maintaining efficient airflow. AMRE Supply identifies part 10386 as an FG IAQ Aerostar Series 400 Pleated Filter with a nominal size of 16" x 25" x 2" and a MERV 8 rating.

Appliance Kingdom supplies HVAC and appliance replacement components to customers across Canada. The 10386 filter is an excellent choice when you need to replace a worn, loaded, or otherwise unsuitable 16" x 25" x 2" MERV 8 filter in a compatible HVAC filtration system.

What Does the FG IAQ 10386 Air Filter Do?

The 10386 filter is designed to capture airborne particles as air passes through an HVAC system. Its pleated filter media provides a larger filtration surface area while allowing air to move through the filter with relatively low resistance.

The Aerostar Series 400 uses synthetic filter media and a support grid designed to help maintain pleat uniformity and structural stability during installation and operation. Its moisture-resistant die-cut frame is designed to resist warping, cracking, and distortion under normal operating conditions.

The filter has a MERV 8 rating and is designed for applications where effective particle filtration and appropriate airflow are required. AMRE Supply lists the filter's initial resistance at 0.13 in. WG at 375 FPM and 0.19 in. WG at 500 FPM.

Why Proper Filter Selection Matters

Selecting the correct filter size, thickness, MERV rating, and capacity is important for maintaining appropriate HVAC airflow and filtration performance.

A filter that is too large, too small, too restrictive, or otherwise incompatible with the HVAC system can interfere with proper airflow. The correct 16" x 25" x 2" filter helps ensure the filtration system operates as intended.

For this reason, always compare the dimensions and filtration requirements of your existing filter or HVAC system before ordering.

Common Signs Your HVAC Filter Needs Replacement

An air filter is a consumable HVAC component and becomes loaded with dust and airborne particles over time. Common signs that a filter may need replacement include:

• Visible dust and debris accumulation on the filter

• Reduced airflow through the HVAC system

• Increasingly dirty air-return areas

• More frequent filter maintenance requirements

• A filter that is visibly damaged, bent, wet, or deteriorated

• An HVAC system operating with a heavily loaded filter

A dirty filter does not necessarily mean that the filter itself is defective. Filters are designed to collect airborne particles, so replacement should be based on the condition of the filter and the requirements of the HVAC system.

Will Replacing the Filter Fix My HVAC Problem?

If restricted airflow or poor filtration is being caused by a dirty, loaded, or damaged filter, installing a correctly sized replacement filter can restore appropriate filtration and airflow.

However, a replacement filter will not correct problems caused by other HVAC components. If your system continues to have airflow, heating, cooling, or operational problems after installing a clean, correctly specified filter, professional HVAC diagnosis may be required.

Filter Compatibility & Ordering Guidance

The 10386 is a nominal 16" x 25" x 2" Aerostar Series 400 pleated filter with MERV 8 efficiency and standard capacity. Its listed actual dimensions are 15-1/2" x 24-1/2" x 1-3/4".

Before ordering, verify:

• Nominal filter size: 16" x 25" x 2"

• Actual filter dimensions: 15-1/2" x 24-1/2" x 1-3/4"

• MERV rating: 8

• Filter type: Pleated

• Capacity: Standard

• Series: Aerostar Series 400

Do not rely solely on the dimensions printed on an old filter. Confirm that your HVAC equipment is designed for the same filter size, thickness, and filtration specification.

Key Features & Benefits

• Genuine OEM FG IAQ Aerostar Series 400 filter

• Part number: 10386

• Nominal size: 16" x 25" x 2"

• Actual size: 15-1/2" x 24-1/2" x 1-3/4"

• MERV 8 filtration

• Standard-capacity configuration

• Pleated filter design

• Synthetic filter media

• Support grid helps maintain pleat uniformity

• Moisture-resistant die-cut frame

• Designed for reliable filtration and airflow

• Rated velocity of 300 FPM

• Listed capacity of 1,050 CFM at medium and 1,400 CFM at high conditions

• UL 900 Class 2 certification listed by AMRE Supply

• Suitable for commercial and industrial HVAC applications

• Practical replacement option for homeowners, landlords, facility managers, and HVAC professionals

HVAC Applications

The Aerostar Series 400 filter is designed for a wide range of HVAC filtration applications. AMRE Supply lists applications including commercial buildings, hotels, industrial facilities, airports, schools, universities, and other environments where air filtration is required to protect occupants and HVAC equipment.

The filter can also be used as a pre-filter in systems incorporating higher-efficiency filtration stages where the HVAC system is designed for that configuration.

Installation & Replacement Overview

Replacing an HVAC air filter is generally a straightforward maintenance task and typically does not require specialised tools.

Before installation:

1. Turn off the HVAC equipment if recommended by the equipment manufacturer.

2. Remove the existing filter.

3. Confirm the replacement filter's size and specifications.

4. Check the airflow direction indicated on the filter.

5. Install the new filter in the correct orientation.

6. Ensure the filter is seated properly within the filter housing.

7. Restore HVAC operation and confirm normal airflow.

Because filter housings and HVAC systems vary, follow the equipment manufacturer's maintenance instructions.

Canada-Wide Availability & Appliance Kingdom Support

Appliance Kingdom is a Canadian supplier serving customers across Canada with replacement parts and HVAC-related components.

The 10386 FG IAQ Aerostar Series 400 filter is available for Canadian customers looking for a 16" x 25" x 2" MERV 8 standard-capacity pleated filter. We support homeowners, landlords, property managers, facility operators, maintenance teams, and professional HVAC technicians across Canada.

For commercial or maintenance applications requiring multiple filters, customers can also contact Appliance Kingdom regarding quantity requirements.

Buyer Confidence

Choosing the correct filter specification helps maintain the intended balance between filtration and airflow. The 10386 has clearly defined specifications, including its 16" x 25" x 2" nominal size, MERV 8 rating, standard capacity, Aerostar Series 400 construction, and listed actual dimensions.

If you are unsure whether 10386 is the correct filter for your HVAC system, contact Appliance Kingdom with your current filter specifications or equipment information before ordering.
