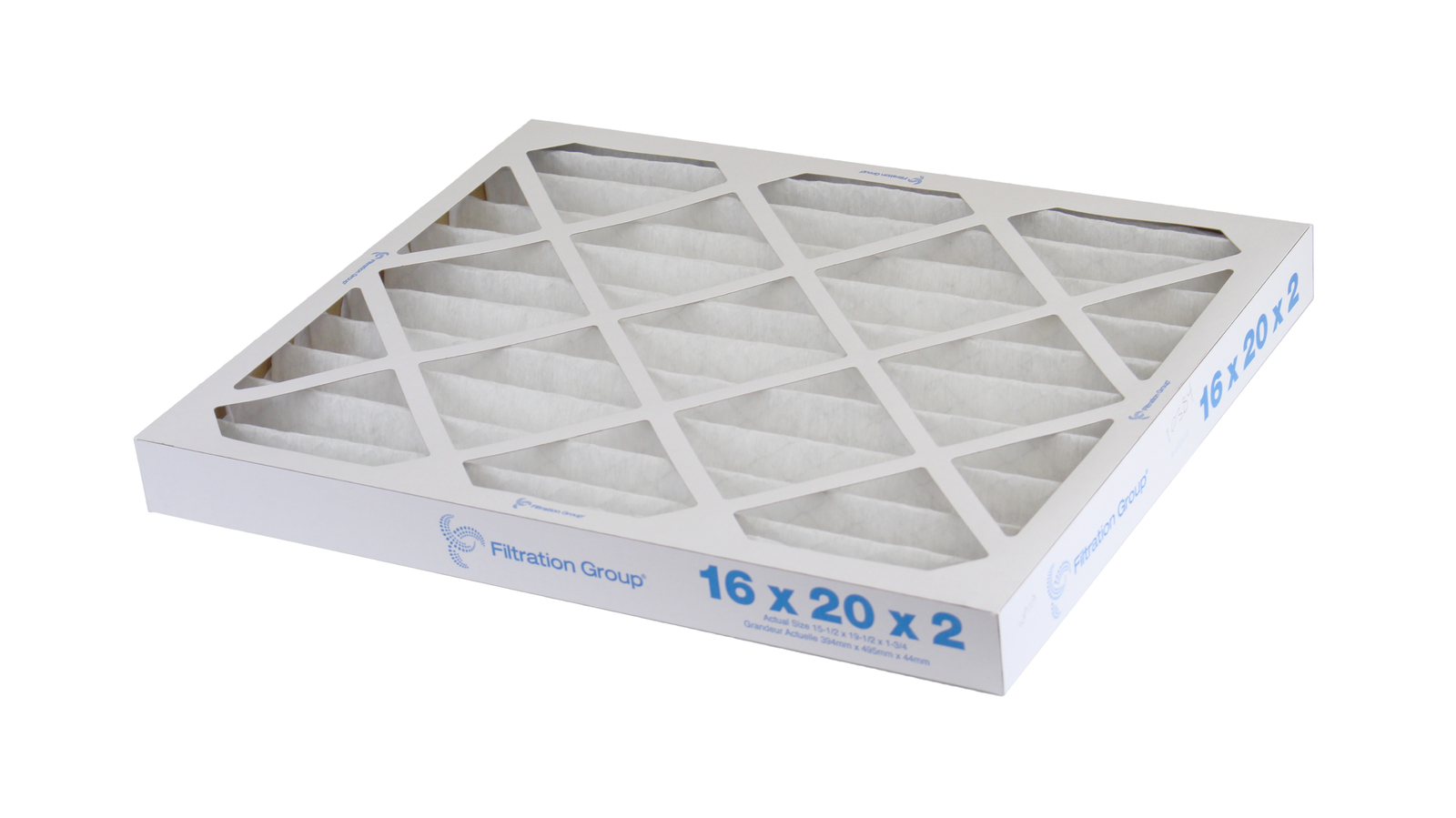

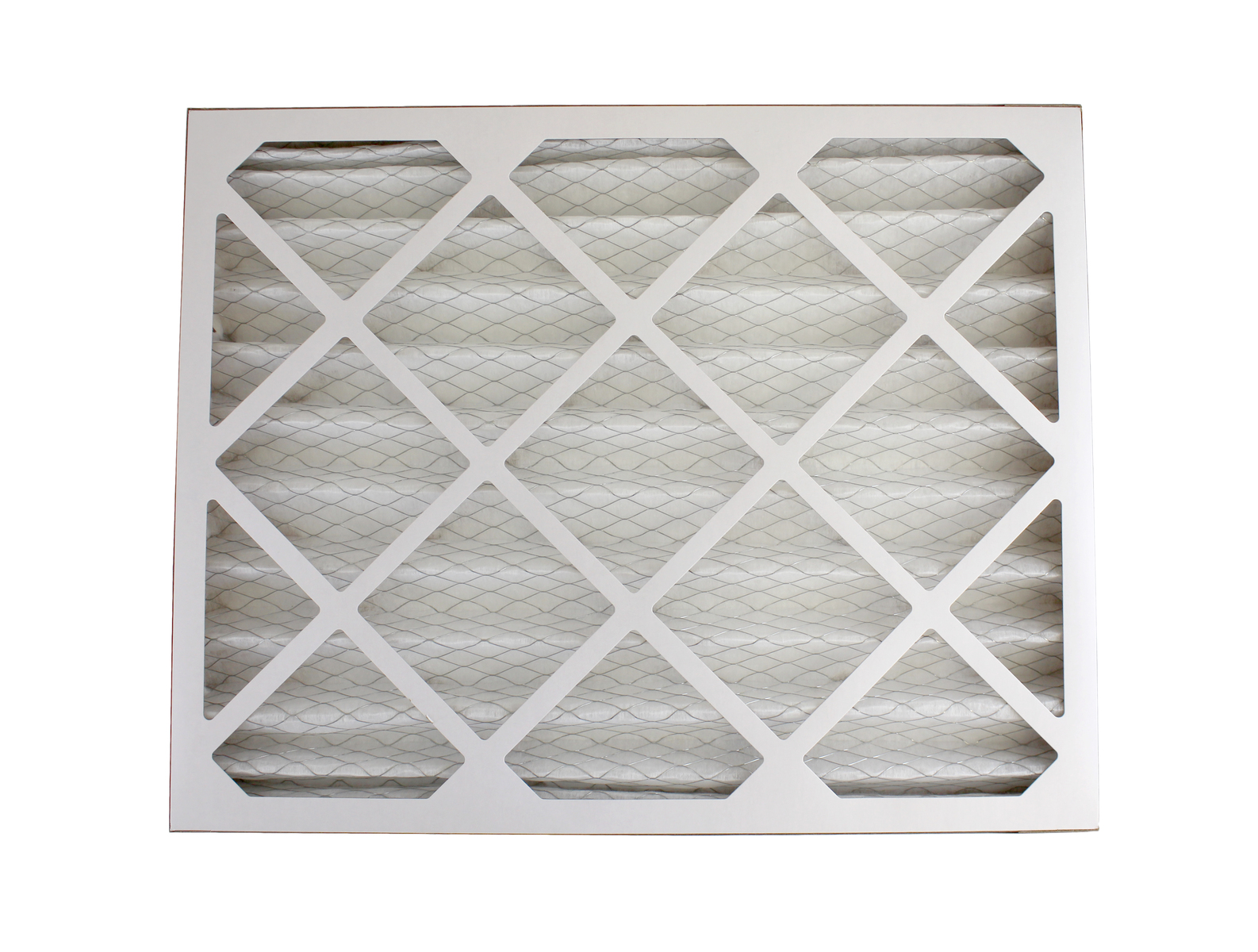

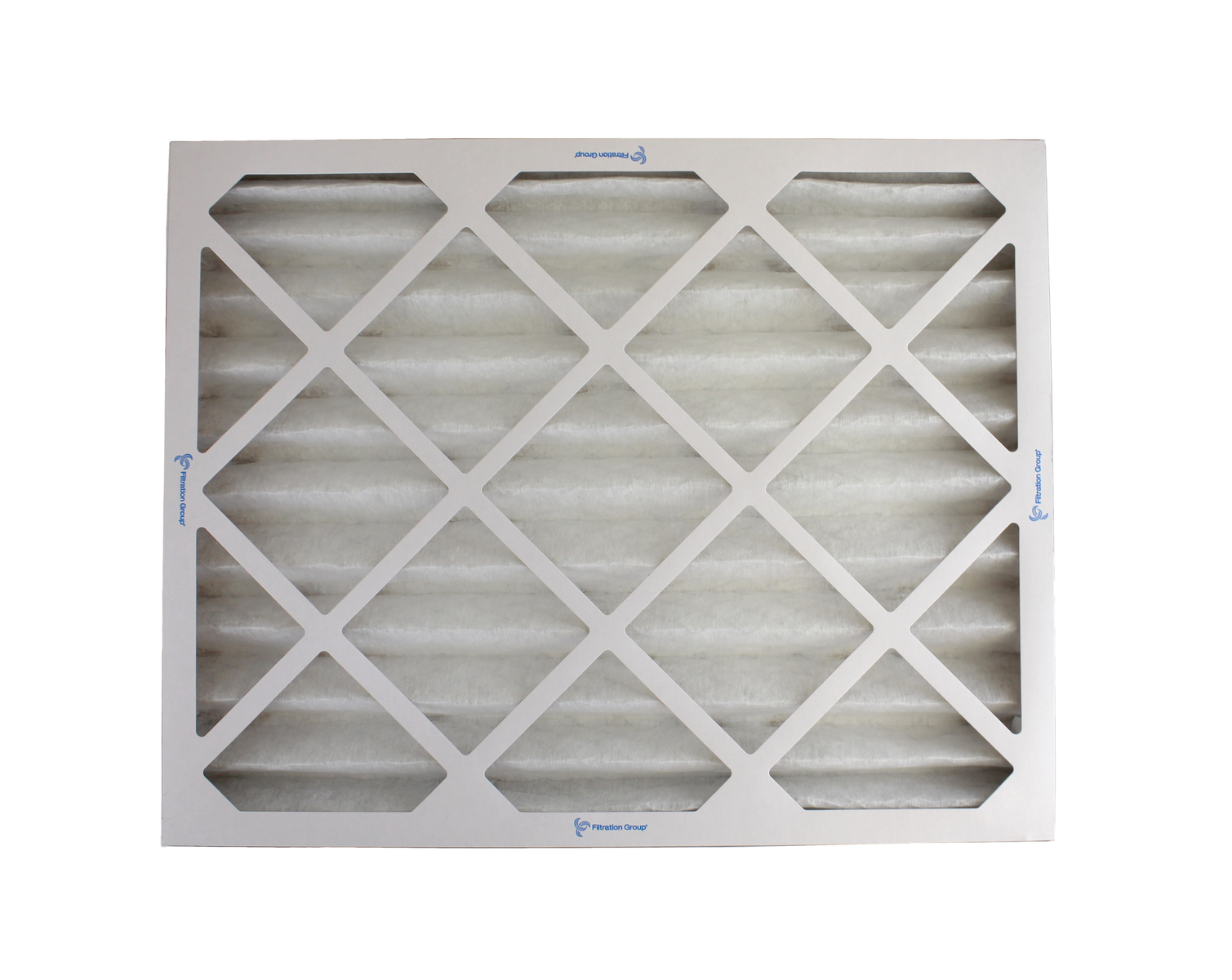

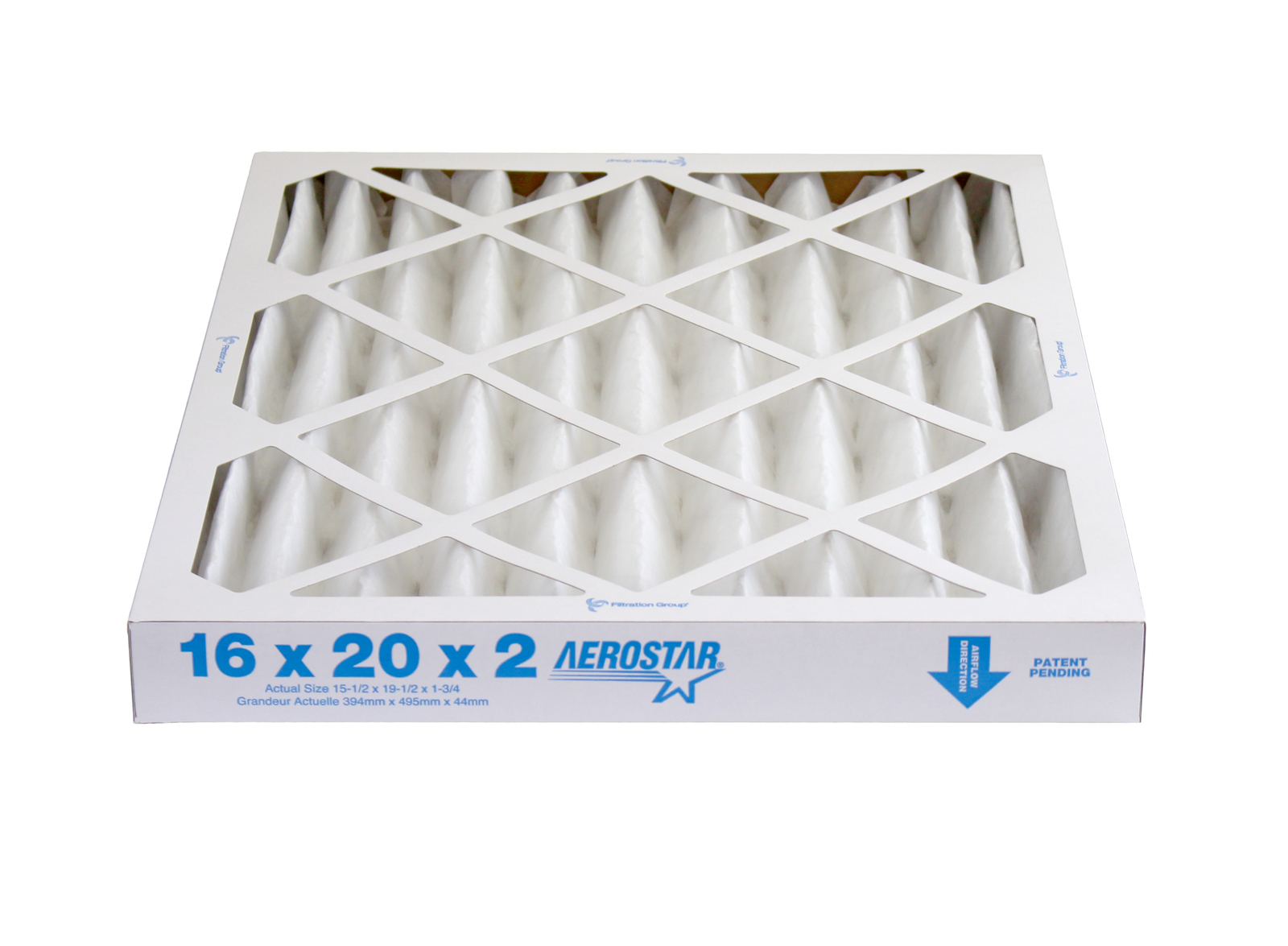

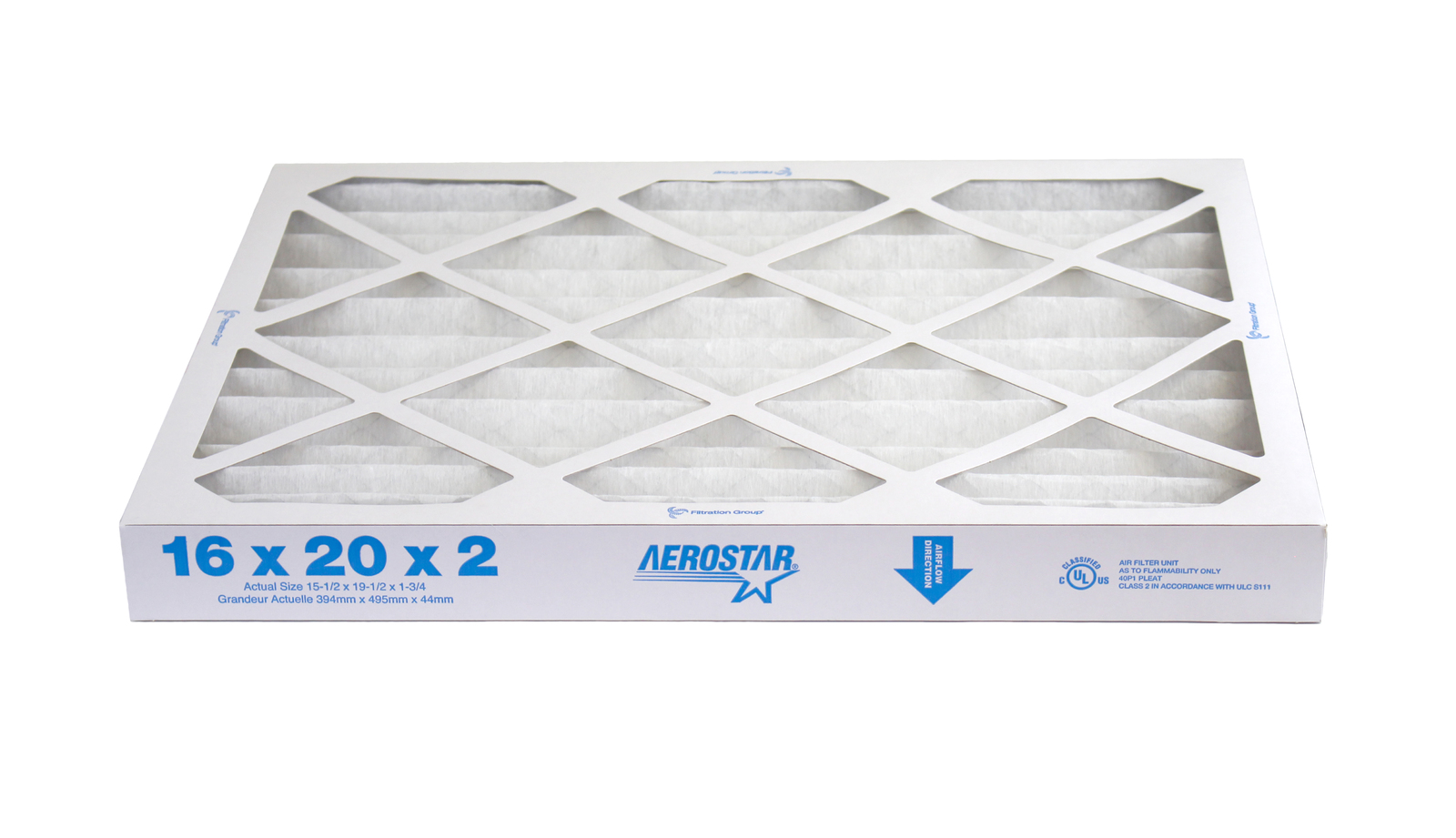

10384 - Genuine OEM FG IAQ Aerostar Series 400 Pleated Filter, 16" x 20" x 2", MERV 8, Standard Capacit

10384 - Genuine FG IAQ Aerostar Series 400 Pleated Air Filter, 16" x 20" x 2", MERV 8

The 10384 Genuine FG IAQ Aerostar Series 400 Pleated Air Filter is a MERV 8, standard-capacity HVAC air filter with a nominal size of 16" x 20" x 2". It is designed to help capture airborne particles such as dust, pollen, mould, and dander while maintaining airflow through compatible heating, ventilation, and air-conditioning systems.

The Aerostar Series 400 uses synthetic filter media supported by an expanded metal grid to help maintain pleat uniformity and structural strength during installation. Its moisture-resistant die-cut frame is designed to resist warping, cracking, and distortion under normal operating conditions.

Appliance Kingdom serves customers across Canada with HVAC and appliance replacement parts. This filter is an appropriate choice for commercial, industrial, institutional, and other HVAC applications requiring a 16" x 20" x 2" MERV 8 standard-capacity pleated filter.

What Does the 10384 Air Filter Do?

The 10384 filter is installed in an HVAC air-handling system to capture airborne particles before they circulate through the system and before dust and dirt can accumulate on components such as cooling coils and ductwork.

The Aerostar Series 400 filter is designed with pleated synthetic media to provide filtration while maintaining relatively low airflow resistance. The support grid helps prevent media flutter and maintains consistent pleat formation for reliable airflow and filtration performance.

The correct filter size and filtration rating are important. A filter that is too large, too small, too thick, or otherwise unsuitable for the system can cause installation problems or adversely affect airflow.

Common Signs Your HVAC Filter Needs Replacement

A dirty or loaded air filter can contribute to reduced HVAC airflow and allow more dust to accumulate within the air-handling system. Common reasons to replace an HVAC filter include:

• Visible dust and dirt accumulation on the filter

• Reduced airflow from supply vents

• Increasing dust around the conditioned space

• Reduced HVAC airflow performance

• A filter that has reached the end of its recommended service interval

• Excessive loading that restricts airflow

Regular filter replacement helps maintain airflow and filtration performance and helps protect HVAC equipment from dust and dirt. AMRE Supply notes that regularly replacing filters helps heating systems operate smoothly and can help prevent costly repairs.

Will Replacing My HVAC Filter Fix the Problem?

If the existing filter is dirty, clogged, or restricting airflow, replacing it with the correct 10384 filter can help restore proper airflow and filtration performance.

However, a replacement filter will not correct mechanical or electrical HVAC faults. If your system continues to have poor airflow, unusual operation, inadequate heating or cooling, or other problems after installing a clean filter, the HVAC system should be inspected by a qualified technician.

Filter Specifications

• Part Number: 10384

• Product: FG IAQ Aerostar Series 400 Pleated Filter

• Nominal Size: 16" x 20" x 2"

• Actual Size: 15-1/2" x 19-1/2" x 1-3/4"

• MERV Rating: 8

• Capacity: Standard

• Filter Type: Pleated

• Series: Aerostar 400

• Filter Media: Synthetic

• Frame: Recycled paperboard

• Rated Velocity: 300 FPM

• Airflow Capability: 825 CFM at medium / 1,100 CFM at high

• Initial Resistance: 0.13 in. WG at 375 FPM; 0.19 in. WG at 500 FPM

• Recommended Final Resistance: 1.0 in. WG

• Maximum listed air velocity for the 2" filter: 500 FPM

• Certification: UL 900 Class 2

• Case Quantity: 12

Compatibility & Ordering Guidance

The 10384 is a 16" x 20" x 2" nominal MERV 8 pleated HVAC filter intended for compatible air filtration applications.

Before ordering, confirm the nominal filter dimensions required by your HVAC equipment. Do not rely solely on the appearance of your existing filter because nominal and actual filter dimensions differ. For this product, the nominal size is 16" x 20" x 2", while the listed actual size is approximately 15-1/2" x 19-1/2" x 1-3/4".

Also verify that your HVAC system is designed for a MERV 8 filter and that the filter depth is correct for the filter rack or housing.

Key Features & Benefits

• FG IAQ Aerostar Series 400 pleated air filter

• Nominal 16" x 20" x 2" size

• MERV 8 filtration

• Standard-capacity design

• Synthetic filter media

• Expanded metal support grid helps maintain pleat uniformity

• Moisture-resistant die-cut frame

• Designed to help capture dust, pollen, mould, dander, and other airborne irritants

• Helps protect HVAC coils, ductwork, and other system components from dust and dirt

• Designed for relatively low airflow resistance

• Suitable for commercial, industrial, institutional, and other compatible HVAC applications

Installation & Replacement Overview

Replacing a pleated HVAC filter is generally a straightforward maintenance task and can typically be completed without specialised tools.

Before installation:

1. Turn off the HVAC equipment if recommended by the equipment manufacturer.

2. Remove the existing filter.

3. Confirm the replacement filter's nominal dimensions.

4. Check the airflow-direction arrow printed on the filter.

5. Insert the 10384 filter in the correct orientation.

6. Ensure the filter is seated properly within the filter rack or housing.

Regular inspection and replacement intervals depend on the HVAC system, operating conditions, building environment, and filter loading. Commercial and industrial systems may require a different replacement schedule than residential systems.

Canada-Wide Availability & Appliance Kingdom

Appliance Kingdom is a Canadian appliance and HVAC parts supplier serving customers across Canada.

The 10384 FG IAQ Aerostar Series 400 filter is a Canadian-market product that is listed by Canadian appliance-parts suppliers, including AMRE Supply and Reliable Parts. Reliable Parts lists the 10384 as available to ship, while AMRE Supply lists the same 16" x 20" x 2" MERV 8 Aerostar Series 400 filter.

Whether you are maintaining a commercial building, rental property, institutional facility, or HVAC system, Appliance Kingdom can help you find the appropriate replacement filter for your application.

Buyer Confidence

When replacing an HVAC filter, getting the correct dimensions and filtration rating is essential. The 10384 is clearly specified as a nominal 16" x 20" x 2" MERV 8 Aerostar Series 400 filter, with documented actual dimensions and performance specifications.

If you are unsure whether 10384 is the correct filter for your system, verify the dimensions and required MERV rating before ordering or contact Appliance Kingdom for assistance.
